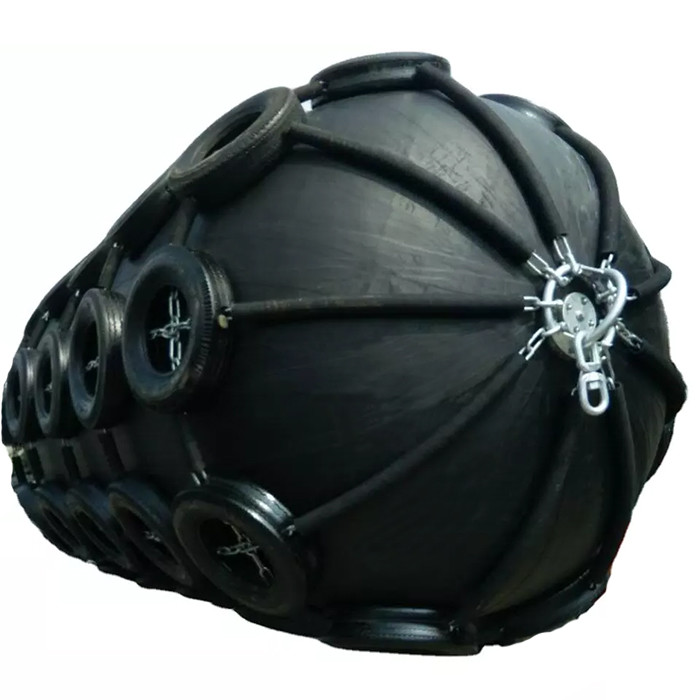

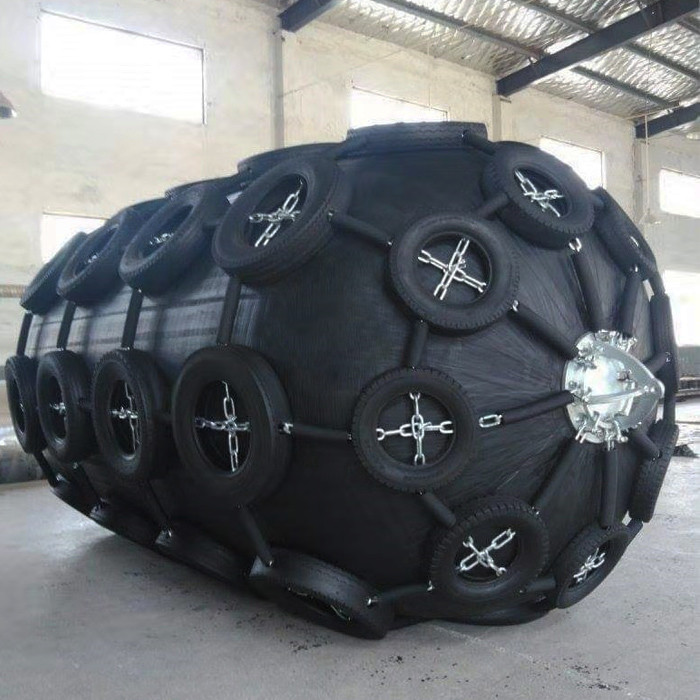

Yokohama Floating Fenders ISO17357 Qualified 50kPa 3.3*6.5M Tear Resistance
Description
Yokohama fender is the ultimate protection for ships, harbor crafts, docks, piers, and wharves. Heavy-duty construction withstands both impact and aggressive environments, marine fenders provide a proven and quality solution in a high-performance fendering system. It is a cost-effective option for intensive long-term use.
The energy absorption does not decrease at inclined compression up to 15 degrees.
The reaction force increases slowly and does not increase sharply even under excess load conditions.
Pneumatic Rubber Fenders are adequately reinforced using strong tire-code to against the combined force during ship berthing and mooring operations.

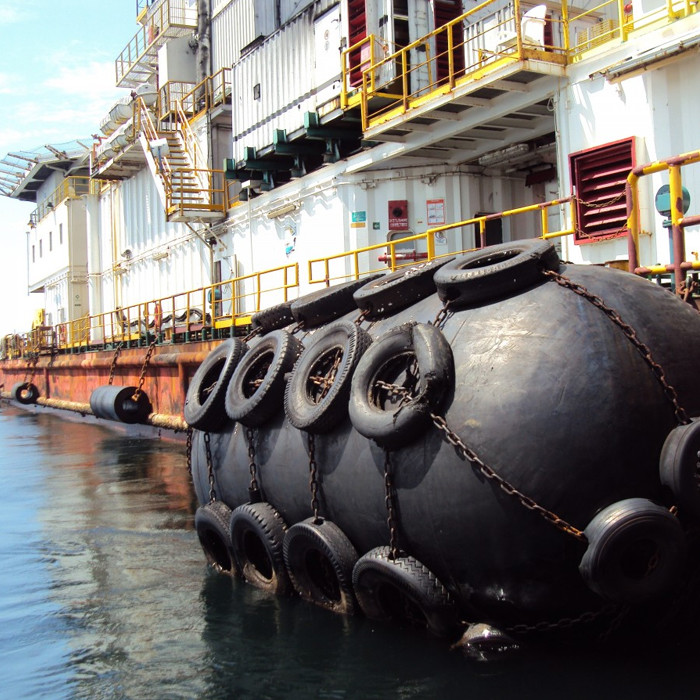

The weight of pneumatic fenders is supported by water on which it floats, therefore, the pneumatic fenders can be simply installed on the wharf and anchor mast.
Specifications
| Product Name |
Yokohama Floating Fenders ISO17357 Qualified 50kPa 3.3*6.5M Tear Resistance |
| Material |
Natural rubber, Silicone rubber |
| Colour |
Black, or customized |
| Surface |
Smooth |
| Size |
Thickness |
12-500mm |
| Diameter |
0.5m-4.5m |
| Length |
1.0m-12.0m |
| All sizes can be customized |
| Physical Properties |
Polymer Content |
100% virgin |
| Working temperature |
-50℃~240℃ |
| Tensile strength |
≥18 mpa |
| Density |
90+/-5 Per 100mm in |
| Hardness |
50-70 (shore A) |
| Elongation |
≥400% |
| Features |
1. Through high temperature resistant |
| 2. Excellent tear resistant, oil resistant, aging resistant |
| 3. Resistant to industrial acid & alkali and good elastic |
| 4. Built as per ISO 17357-1:2014 |
| Application |
ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), large tankers, vessels, docks, harbor wharfs and ocean platforms |
Diameter x Length
[mm] |
50kPa
Performance Data |
80kPa
Performance Data |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
| 1000 x 1500 |
122 |
182 |
32 |
160 |
239 |
45 |
| 1000 x 2000 |
132 |
257 |
45 |
174 |
338 |
63 |
| 1200 x 2000 |
126 |
297 |
63 |
166 |
390 |
88 |
| 1350 x 2500 |
130 |
427 |
102 |
170 |
561 |
142 |
| 1500 x 3000 |
153 |
579 |
153 |
174 |
761 |
214 |
| 1700 x 3000 |
128 |
639 |
191 |
168 |
840 |
267 |
| 2000 x 3500 |
128 |
875 |
308 |
168 |
1150 |
430 |
| 2500 x 4000 |
137 |
1381 |
663 |
180 |
1815 |
925 |
| 2500 x 5500 |
148 |
2019 |
943 |
195 |
2653 |
1317 |
| 3300 x 4500 |
130 |
1884 |
1175 |
171 |
2476 |
1640 |
| 3300 x 6500 |
146 |
3015 |
1814 |
191 |
3961 |
2532 |
| 3300 x 10600 |
158 |
5257 |
3067 |
208 |
6907 |
4281 |
| 4500 x 9000 |
146 |
5747 |
4752 |
192 |
7551 |
6633 |
| * Other size can be produced follow client's requirements. |
Features
1. Excellent compressibility and elasticity.
2. Good buoyancy and simplified handing.
3. Low reaction and high absorption energy fender with low surface pressure.
4. Easy to installation and repair.
5. Maximum permissible service life.
Applications
● Tankers, gas carriers and hulk cargo ships.
● Fast ferries and aluminum hulled vessels.
● Temporary or permanent installations.
● Rapid response and emergency fendering.
● As stand-off fenders to realign ships with shore facilities.
Advantages
◆ Fully compliant with ISO 17357-1:2014.
◆ Original factory, competitive price.
◆ Best discount to save project budget.
◆ Third party strict inspection + In-house performance test.
◆ With excellent oil resistance, heat resistance, anti-aging properties.
