Anti Aging Natural Rubber Leg Fender UHMW-PE Pads For Port Quay

Bumper Dock Rubber Fender Leg MV Fender UHMW-PE Pads For Port Quay

Description

Leg fenders are high-performance modular dock rubber fender with exquisite geometry, easy to install, little maintenance, and high performance and efficient energy absorption. Leg fenders have multiple installations and can meet the requirements of different docks. The combined installation could reduce the compression performance during angle berthing.

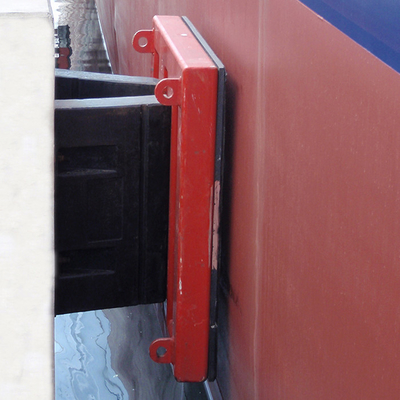

The leg rubber fenders can be installed vertically and/or horizontally, which is very suitable for confined spaces. It is used for small docks to large mooring structures. This fender can also be installed with UHMW-PE surface pads or steel plates. Compared with traditional arch fenders, it provides a cost-effective and high-performance solution in a limited area.

The height of the leg fenders we produced and provided ranges from 250 to 1,600 mm, and the standard length ranges from 500 to 2,000 mm. Other sizes are available on request.

Specifications

Features

1. Modular design, suitable for small spaces

2. Easy to install, maintain and replace

3. Lightweight design, suitable for vertical, horizontal and mixed arrangement

4. High energy absorption per unit weight

5. Strong longitudinal shear force and large performance range

Applications

● Container Terminal

● Grocery Terminal

● Ro-Ro Terminal

● Tanker Berths

● Small Craft Berths

● Fender Wall

● Barge

Rubber Properties

Rubber compounds are designed for long life in marine environments. All fenders are made using high quality natural and/or synthetic rubber compounds, formulated for high performance and reliability.

Rubber compounds include additives to resist the effects of ozone and ultra-violet light. The Vulcanization process (temperature, pressure and time) is strictly controlled to ensure a homogenous product with excellent physical properties and rubber to metal bond strengths.

► Marine grade compounds

► Natural and/or synthetic

► Resists ozone and UV

► Excellent bond strengths

► Fully homogeneous

► Fully recyclable

Moulded rubber fender compounds also comply to ASTM D 2000 callouts:

3BA 720 A14 B13 C12 EA14 F17

3BA 620 A14 B13 C12 EA14 F17
