Marine Fenders Aging High Quality Rubber 10 Year Warranty Advanced Wear Resistant Technology
Description

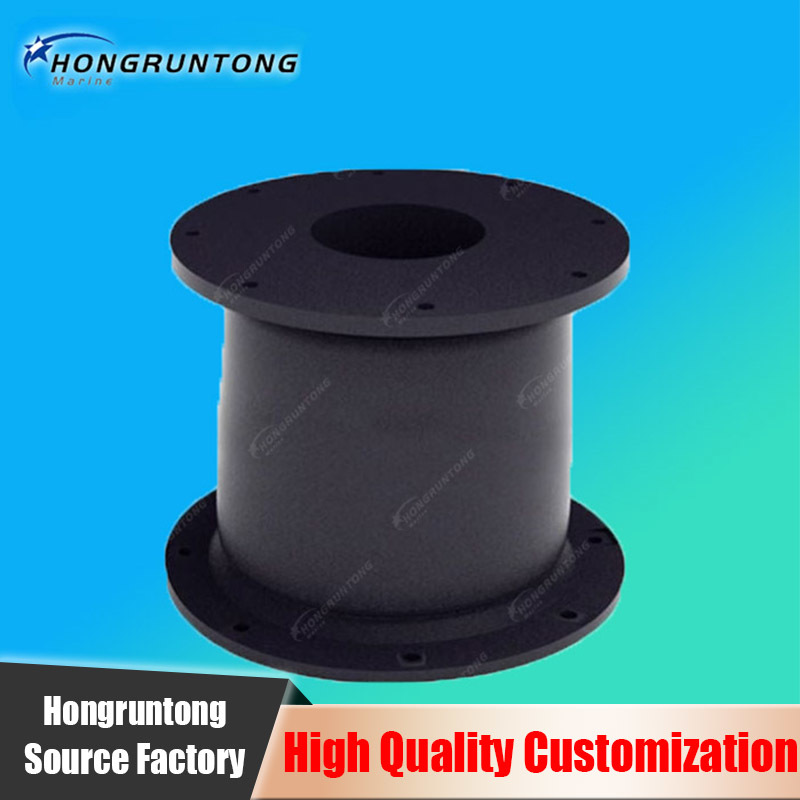

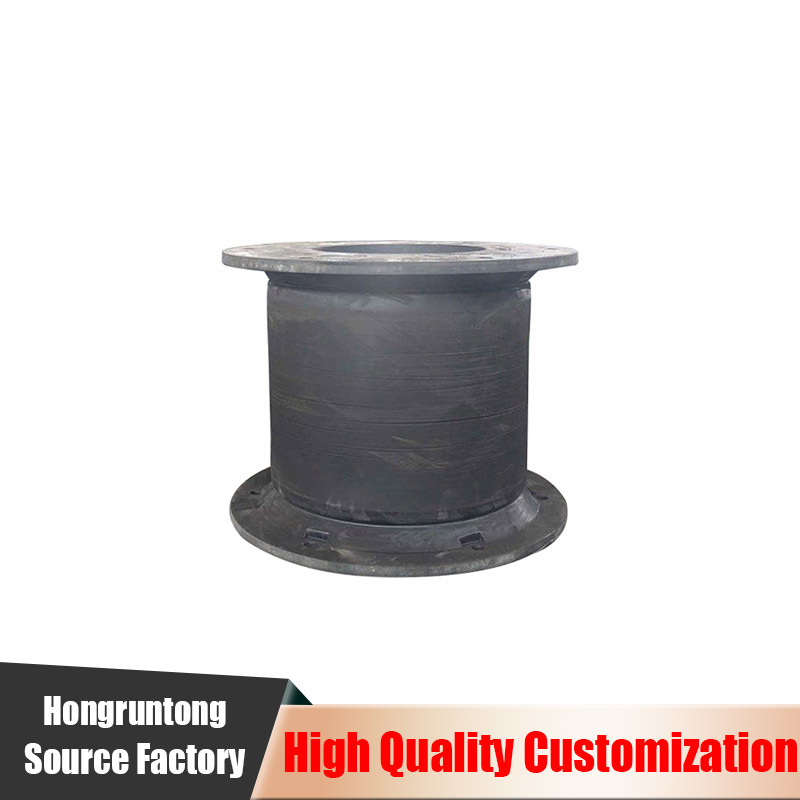

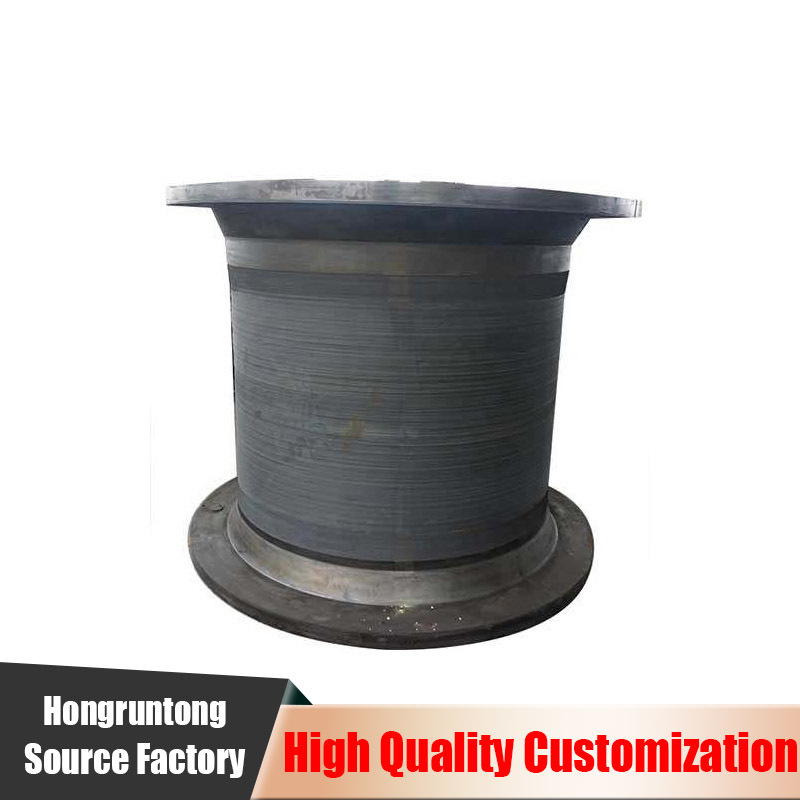

Designed for yachts and inland waterways, this space-saving Cell Rubber Fender (e.g., 600×600×250mm) offers optimal protection in tight berths. Its lightweight yet resilient 4-cell structure absorbs low-energy impacts (50-100 kN·m) with minimal recoil. The smooth surface prevents hull scratches, while saltwater-resistant rubber ensures longevity. Easy to mount on floating docks or fixed piers, it’s a practical choice for recreational and small commercial harbors.
Specifications
| Product Name |
Cell Rubber Fender |
| Brand Name |
Hongruntong Marine |
| Material |
High Quality Natural Rubber |
| Reaction Force |
29-4626KN |
| Energy Absorption |
4-6102KNM |
| Hardness |
≤82 Shore A |
| Standard |
PIANC2002, HGT2866-2016 |
| Processing Service |
Moulding, Cutting |
| Lifespan |
15-20 Years |
| Service |
OEM or ODM |
| Features |
Strong, Robust, Well Proven Design |
| Application |
Port, Dock, Quay, etc |
| Model |
H |
h |
D1 |
D2 |
n-t |
| Cell |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| CF-C400H |
400 |
25 |
650 |
550 |
30 |
| CF-C500H |
500 |
25 |
650 |
550 |
32 |
| CF-C630H |
630 |
30 |
840 |
700 |
39 |
| CF-C800H |
800 |
30 |
1050 |
900 |
40 |
| CF-C1000H |
1000 |
35 |
1300 |
1100 |
47 |
| CF-C1150H |
1150 |
40 |
1500 |
1300 |
50 |
| CF-C1250H |
1250 |
45 |
1650 |
1450 |
53 |
| CF-C1450H |
1450 |
47 |
1850 |
1650 |
61 |
| CF-C1600H |
1600 |
50 |
2000 |
1800 |
61 |
| CF-C1700H |
1700 |
55 |
2100 |
1900 |
66 |
| CF-C2000H |
2000 |
55 |
2200 |
2000 |
74 |
| CF-C2250H |
2250 |
60 |
2550 |
2300 |
74 |
| CF-C2500H |
2500 |
70 |
2950 |
2700 |
90 |
| CF-C3000H |
3000 |
75 |
3350 |
3150 |
90 |
Features
Advanced Cellular Structure Design
The multi-cell configuration (typically 4, 9 or 16 cells) provides superior energy absorption through optimized air compression within each compartment, distributing impact forces more effectively than solid fenders.
High Energy Absorption Capacity
Engineered to absorb up to 2,500+ kN·m of impact energy (depending on size), with energy absorption efficiency ratings exceeding 90% of theoretical maximum capacity.
Progressive Compression Behavior
Features non-linear compression characteristics that provide softer initial contact followed by increasing resistance, significantly reducing peak impact forces on vessel hulls.
Low Reaction Force Ratio
Maintains industry-leading reaction force to energy absorption ratios (typically 1.5:1 to 2:1), minimizing structural loads on both vessels and dock facilities.
Applications
● Jetties
● Quays
● Marinas
Global Export and Project Experience
We have delivered fenders to over 60 countries for ports, terminals, shipyards, and naval bases.
Rapid Production and Delivery Lead Time
Standard models can be shipped within 15–30 days with dedicated logistics support.
Full Technical Documentation and Drawings Provided
Each project includes performance data sheets, QA reports, shop drawings, and installation manuals.
Dedicated R&D for New Marine Applications
We continuously develop new fender designs for offshore platforms, LNG terminals, and floating docks.
FAQ
1. What is the typical service life of a Cell Fender?
With proper installation and maintenance, service life can exceed 20 years under normal marine conditions.
2. Do you provide performance test reports?
Yes. We offer compression test reports, rubber property certificates, and third-party verification if required.
3. Can Cell Fenders be customized?
Absolutely. We can customize energy absorption, dimensions, flange type, and mounting configurations based on project needs.
4. What is the reaction force of the fender?
Reaction force varies by model but is designed to remain within safe limits as per PIANC recommendations.
