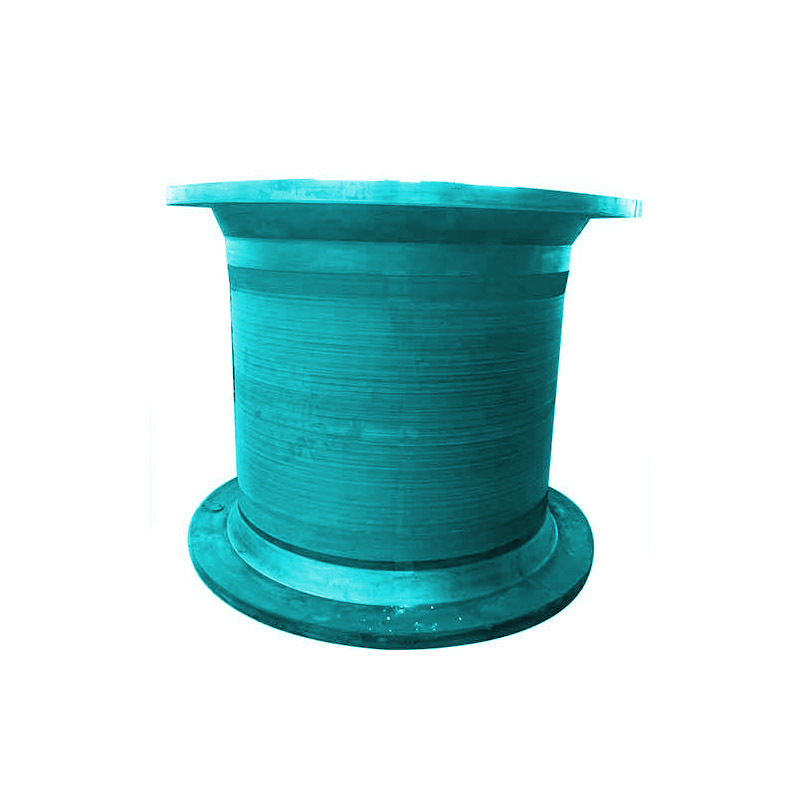

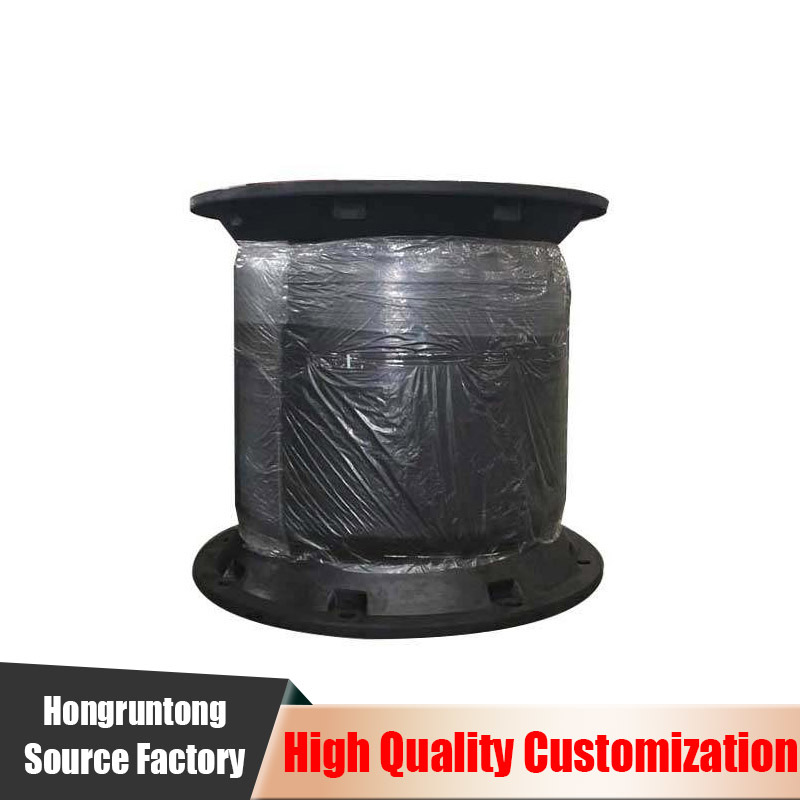

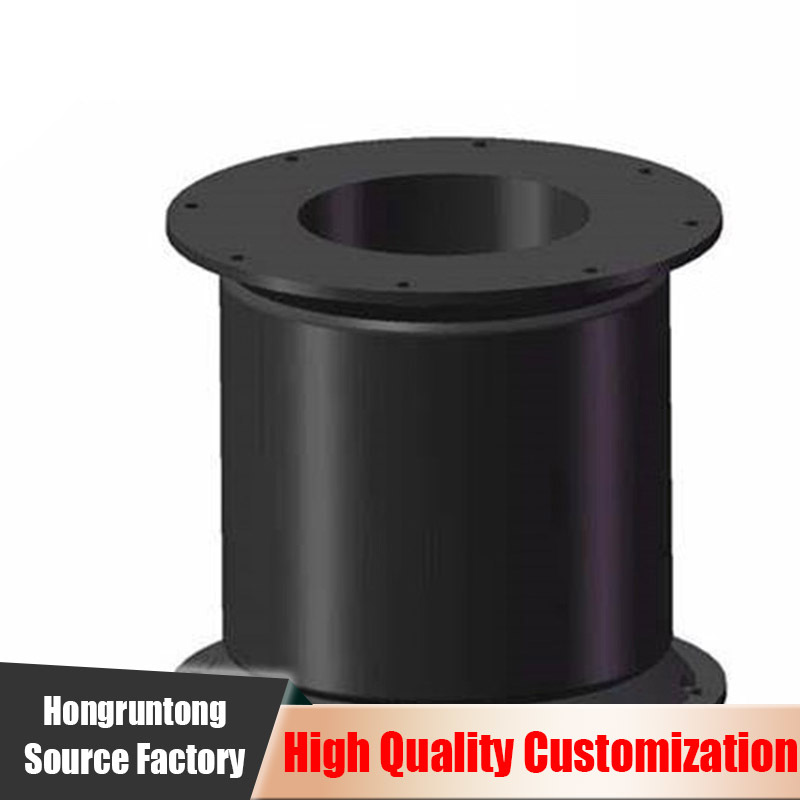

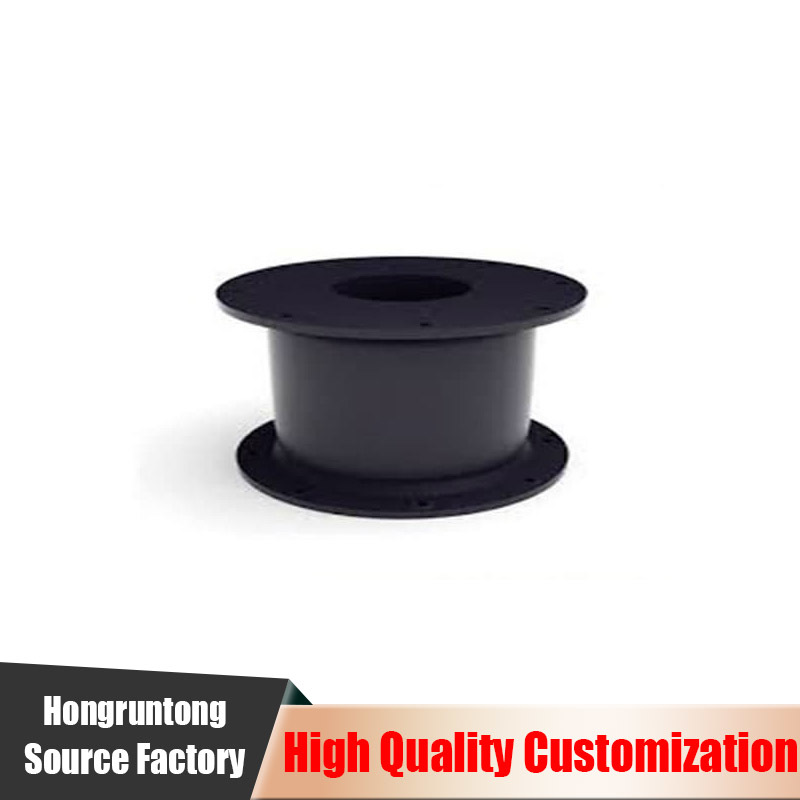

5000×5000×2000mm Cell Fender Deformation Compression Resistant Non Polluting
Description
The Cell Rubber Fender is a high-performance marine bumper designed for port and ship protection. Its unique cellular structure provides excellent energy absorption, reducing impact forces during vessel berthing. Made from durable synthetic rubber, it resists seawater, UV rays, and extreme weather. Available in various sizes (e.g., 1000×1000×350mm to 5000×5000×2000mm), it suits small boats to large oil tankers. With low reaction force and 50-60% compression, it ensures safe docking while minimizing damage. Easy to install and maintenance-free, it’s widely used in ports, terminals, and offshore platforms.
Specifications
Product Name | Cell Rubber Fender |
Brand Name | Hongruntong Marine |
Material | High Quality Natural Rubber |
Reaction Force | 29-4626KN |
Energy Absorption | 4-6102KNM |
Hardness | ≤82 Shore A |
Standard | PIANC2002, HGT2866-2016 |
Processing Service | Moulding, Cutting |
Lifespan | 15-20 Years |
Service | OEM or ODM |
Features | Strong, Robust, Well Proven Design |
Application | Port, Dock, Quay, etc |
Model | H | h | D1 | D2 | n-t |
Cell | [mm] | [mm] | [mm] | [mm] | [mm] |
CF-C400H | 400 | 25 | 650 | 550 | 30 |
CF-C500H | 500 | 25 | 650 | 550 | 32 |
CF-C630H | 630 | 30 | 840 | 700 | 39 |
CF-C800H | 800 | 30 | 1050 | 900 | 40 |
CF-C1000H | 1000 | 35 | 1300 | 1100 | 47 |
CF-C1150H | 1150 | 40 | 1500 | 1300 | 50 |
CF-C1250H | 1250 | 45 | 1650 | 1450 | 53 |
CF-C1450H | 1450 | 47 | 1850 | 1650 | 61 |
CF-C1600H | 1600 | 50 | 2000 | 1800 | 61 |
CF-C1700H | 1700 | 55 | 2100 | 1900 | 66 |
CF-C2000H | 2000 | 55 | 2200 | 2000 | 74 |
CF-C2250H | 2250 | 60 | 2550 | 2300 | 74 |
CF-C2500H | 2500 | 70 | 2950 | 2700 | 90 |
CF-C3000H | 3000 | 75 | 3350 | 3150 | 90 |
Features
Shock Absorption Memory
Advanced rubber compounds that maintain original shape and performance characteristics after repeated high-energy impacts.
Environmentally Compliant
Formulated without heavy metals or harmful plasticizers, meeting EU REACH and RoHS environmental standards.
Proven Track Record
Extensive installations at major global ports with documented performance in over 10,000 vessel calls without failure.
Comprehensive Certification
Supplied with full certification packages including:
ISO 17357:2014 (High pressure floating rubber fenders)
OCIMF MEG4 compliance
PIANC WG33 guidelines
ABS/Lloyd's Register type approval
Custom test reports available upon request
Applications
● Shipyards Dry Docks
Advantages
Over 30 Years of Manufacturing Experience
We have been specializing in rubber fender production since the early 1990s, building strong expertise and global trust.
Industry Leading Cell Fender Technology
Our cell fenders are engineered with optimized geometry for high energy absorption and low reaction force.
Full In House Production Capability
From rubber mixing to final molding and testing, every process is completed under one roof for full quality control.
Use of Premium Natural and Synthetic Rubber Compounds
We formulate our own rubber blends for superior performance in marine environments and long service life.
FAQ
1. What quality control measures are in place?
Each fender is inspected for dimensional accuracy, rubber hardness, tensile strength, and bonding quality.
2. What is the lead time for production?
Standard models can be delivered within 2–4 weeks. Custom orders may take 4–6 weeks depending on complexity.
3. Do you offer installation or on-site support?
Yes. We provide remote or on-site technical guidance and supervision for large projects.
4. Do your fenders come with warranty?
Yes. Our Cell Fenders are backed by a standard 12–24 month warranty depending on contract terms and usage.
