Name: 1.5m Marine Fender High Energy Absorption Uv Resistant Easy Installation
Brand: Hongruntong Marine Co., Ltd.
SKU: HM-PRF98
Price: 256.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Pneumatic Rubber Fender

Accessories: Tyres, Steel Chain, Hang Ring

Color: Black

Service Life: 10~15 Years

Standard: ISO17357-1:2014, PIANC2002

Material: NR

Usage: Protect Boat

Feature: UV Resistance

MOQ: 1

Basic Infomation

Place of Origin: China

Brand Name: Hongruntong Marine

Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

Model Number: HM-PRF98

Payment & Shipping Terms

Packaging Details: Pallet, Wooden Box

Delivery Time: 10-20 Days

Payment Terms: T/T, L/C, D/A, , D/P, Western Union, MoneyGram

Supply Ability: 5680 Pcs/Month

Gallery

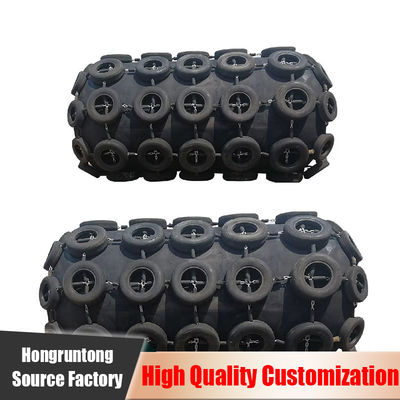

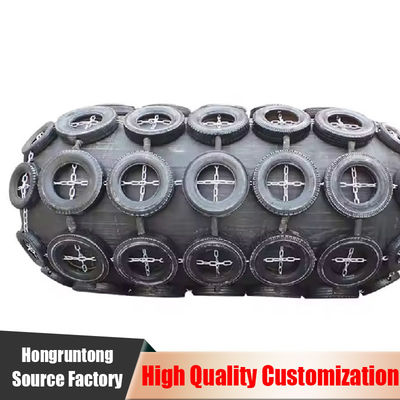

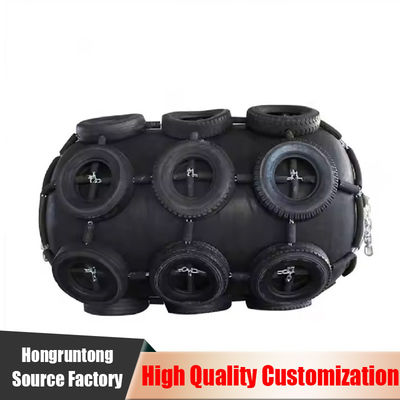

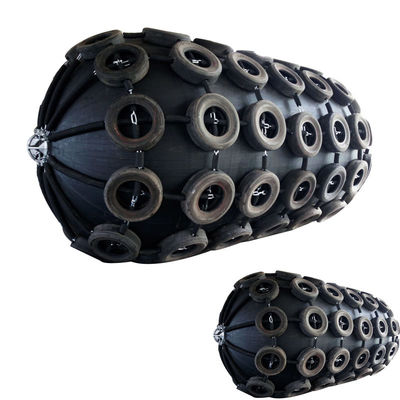

1.5m Marine Fender High Energy Absorption Uv Resistant Easy Installation

Product Description

1.5m Marine Fender High Energy Absorption Uv Resistant Easy Installation

Description

Designed with recyclable rubber and non-toxic materials, these fenders meet green port initiatives without compromising strength. Available in 1.2m–3.0m sizes, they deliver 200–800kJ energy absorption and resist biofouling and chemical exposure. The low-friction surface reduces vessel wear, while the modular design allows easy replacement of parts. Certified by ISO 17357 and Clean Sea Mark for environmental safety.

Specifications

Place of Origin	China
Brand Name	Pneumatic Rubber Fender
Material	Natural Rubber
Color	Black
Application	In Ports with Extreme Tidal Variations Ship-to-Ship Lightering Operations Oil Gas (Typically Fsru) Temporary Berthing
Feature	Heat Resistance
Sample	Usually Free
Production Method	Moulding
Temperature	-40℃~300℃
Packing	Pallets
Lead time	7-14 days

Diameter x Length [mm]	50kPa Performance Data			80kPa Performance Data
Diameter x Length [mm]	Hull Pressure at GEA / kN / m2	Reaction Force / kN	Energy Absorption / kNm	Hull Pressure at GEA / kN / m2	Reaction Force / kN	Energy Absorption / kNm
1000 x 1500	122	182	32	160	239	45
1000 x 2000	132	257	45	174	338	63
1200 x 2000	126	297	63	166	390	88
1350 x 2500	130	427	102	170	561	142
1500 x 3000	153	579	153	174	761	214
1700 x 3000	128	639	191	168	840	267
2000 x 3500	128	875	308	168	1150	430
2500 x 4000	137	1381	663	180	1815	925
2500 x 5500	148	2019	943	195	2653	1317
3300 x 4500	130	1884	1175	171	2476	1640
3300 x 6500	146	3015	1814	191	3961	2532
3300 x 10600	158	5257	3067	208	6907	4281
4500 x 9000	146	5747	4752	192	7551	6633
* Other size can be produced follow client's requirements.

1.5m Marine Fender High Energy Absorption Uv Resistant Easy Installation 0

Features

Embedded Sensor Array

Strain gauges (±0.1% FS) and MEMS accelerometers sampling at 500Hz for real-time impact force vector analysis.

Predictive Maintenance AI

Machine learning algorithms processing historical data to forecast wear patterns with 85% accuracy (reducing unplanned downtime by 40%).

Wireless Power Data

IP68-rated inductive charging system with LoRaWAN connectivity (5km range) for continuous operation.

Modular Repair System

Sectionalized design allows replacement of damaged segments (30% cost savings vs full unit replacement).

Applications

• Automated container terminals

• Strategic naval bases

• Floating LNG facilities

• High-velocity ferry docks

Advantages

Dynamic Impact Absorption

Optimized for 2.5m/s vessel approach speeds (LS-DYNA validated).

Thermal Stability

Phase-change material layers maintain pressure within ±3% from -20°C to 50°C.

Armor Clad Surface

12mm Kevlar-reinforced wear layer (DIN 53516 wear rate <0.08cm³).

Military Grade Anchoring

316L stainless D-rings rated for 5x design load (ABS fatigue-certified).

FAQ

1. What’s the maximum impact speed?
A: R. ed for 2.5m/s; custom designs available for higher velocities.

2. Q2: Can they handle ice impacts?
A: Yes, the Kevlar layer resists ice abrasion in Arctic conditions.

3. Q3: How are they different from standard fenders?
A: Tuned air spring response reduces peak forces by 25% at high speeds.

4. Q4: Are they suitable for naval use?
A: Yes, MIL-SPEC compliant for shock and vibration resistance.

1.5m Marine Fender High Energy Absorption Uv Resistant Easy Installation 1
